Replacing the Rheostat on a BATCADDY X9R

Replacing the Rheostat on a BATCADDY X9R

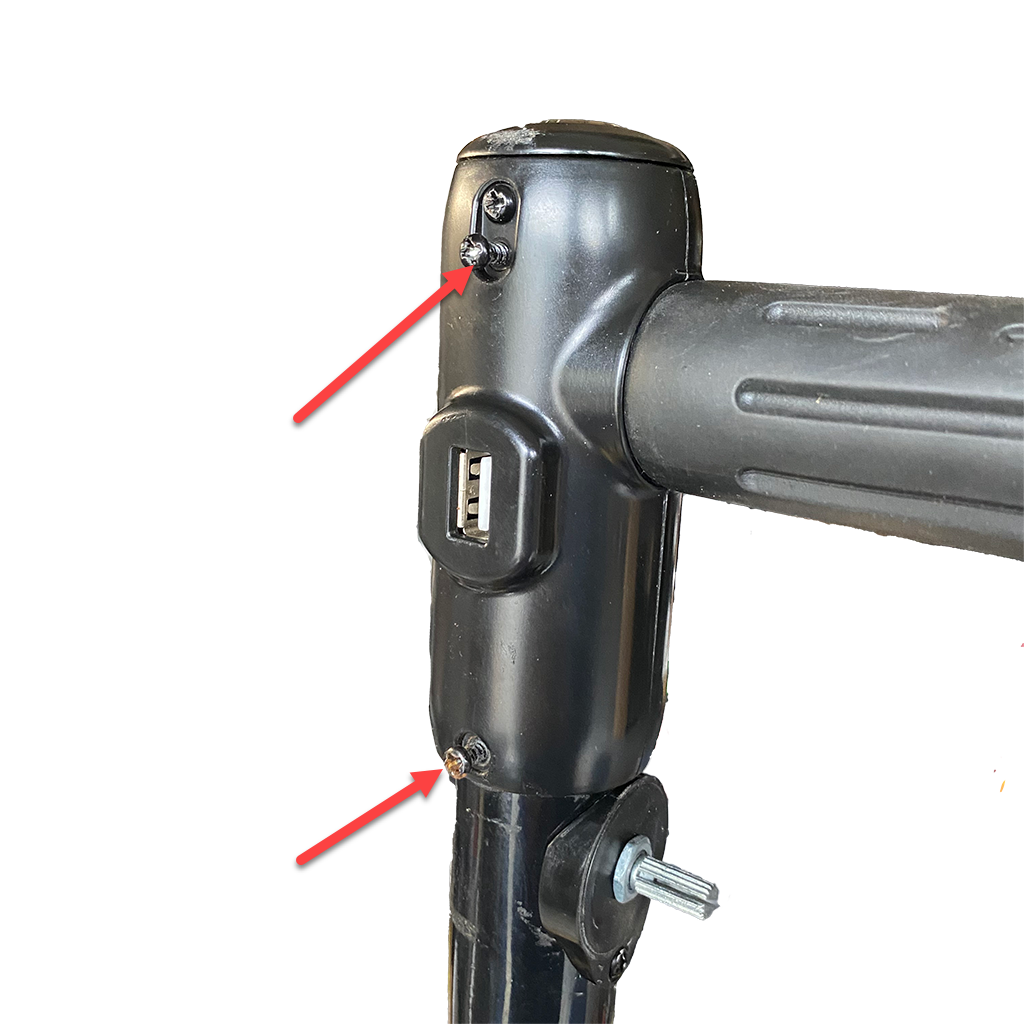

Remove the lower two of three screws on the back of the carts handle, leaving the top screw in place.

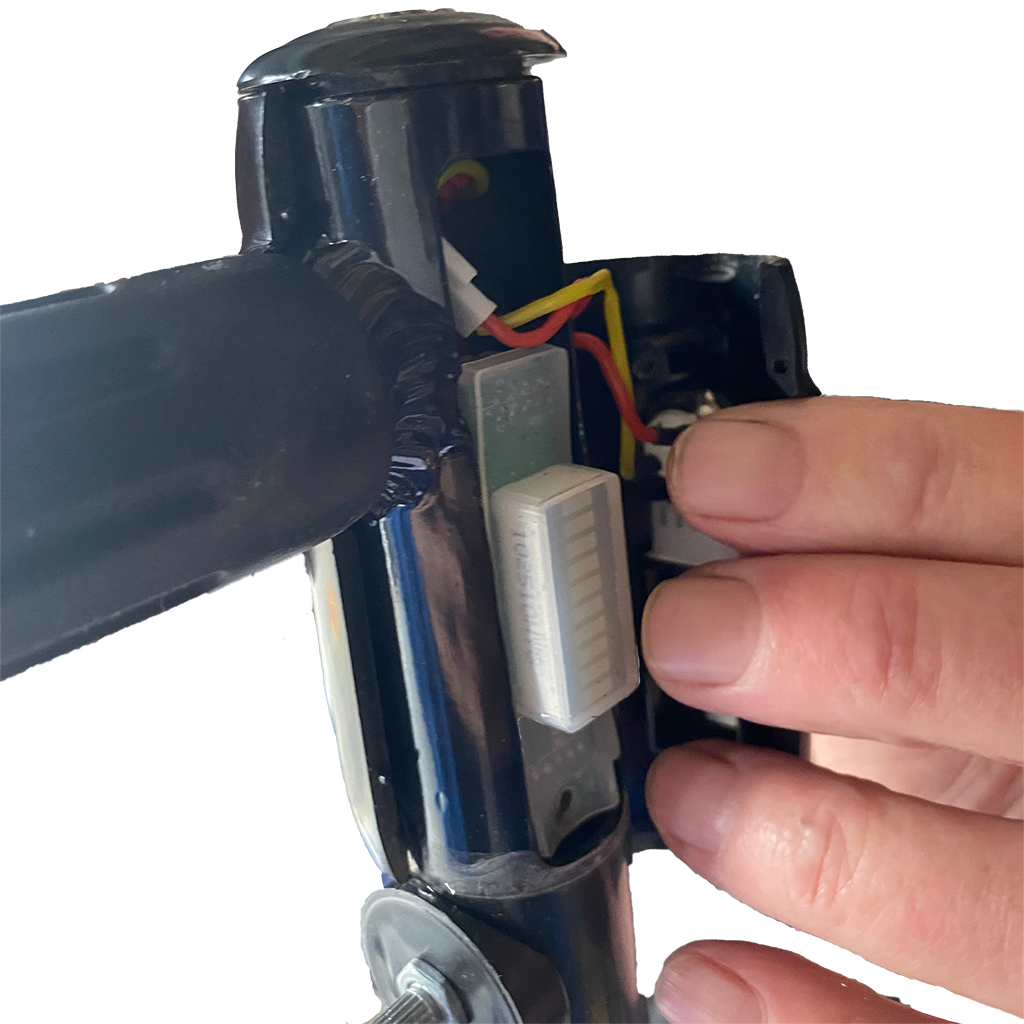

Remove the panel on the front of the handle to expose the circuit board and wiring.

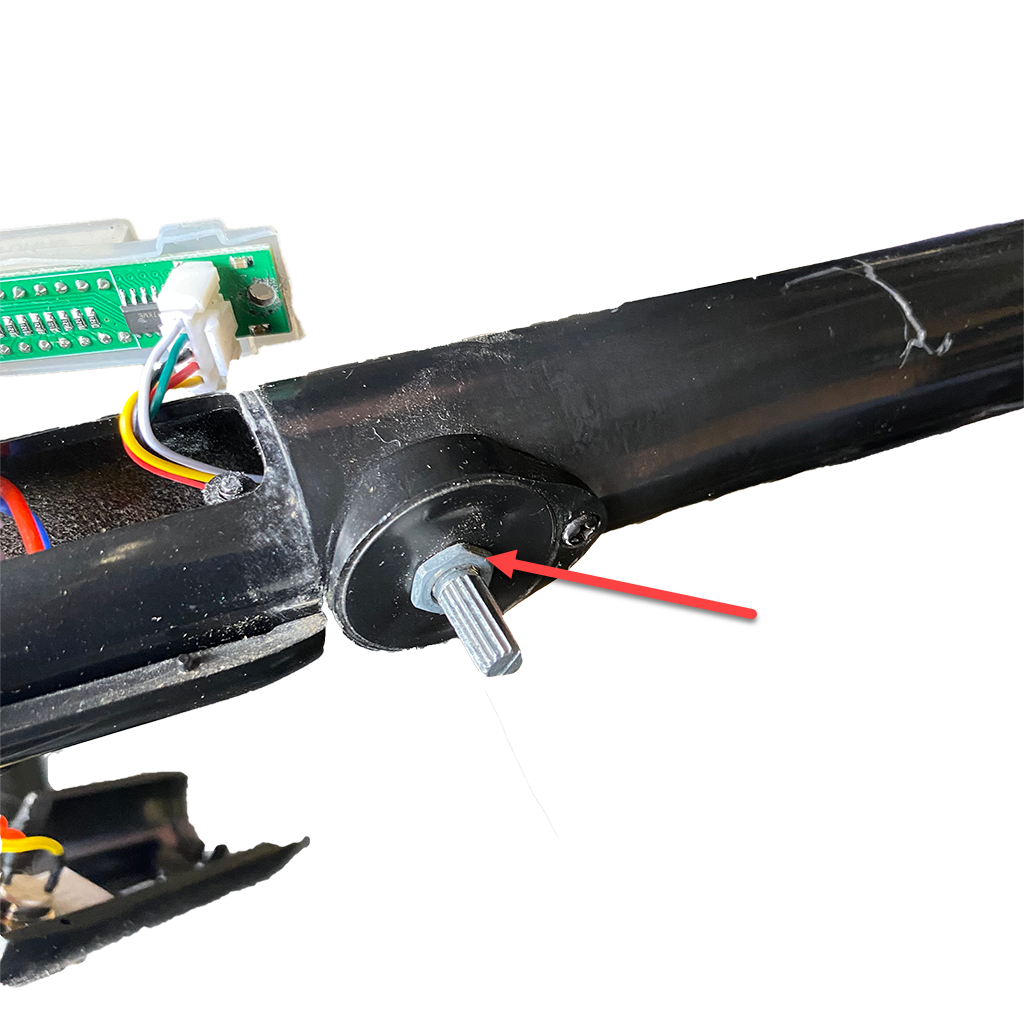

Remove the locknut that holds the rheostat in place.

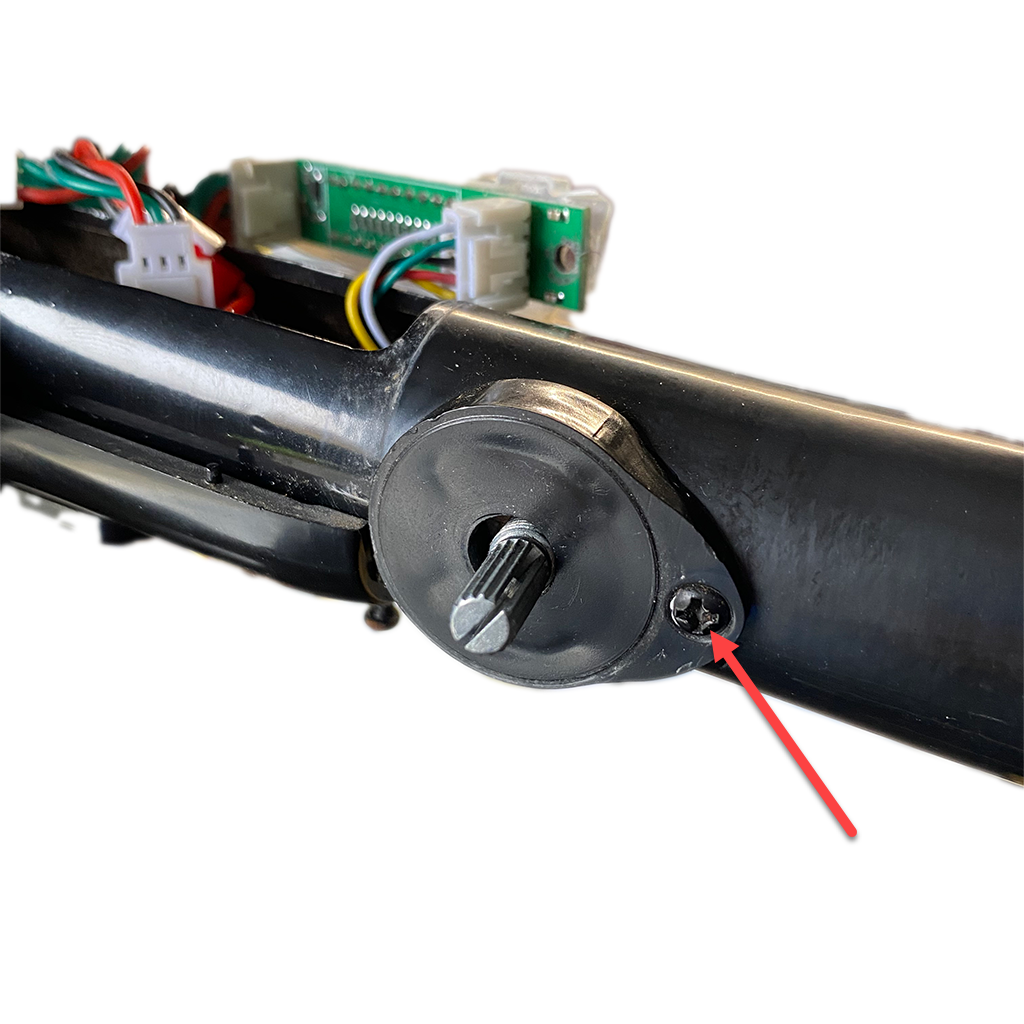

Remove the rheostat mounting plate by removing the screw that holds it in place.

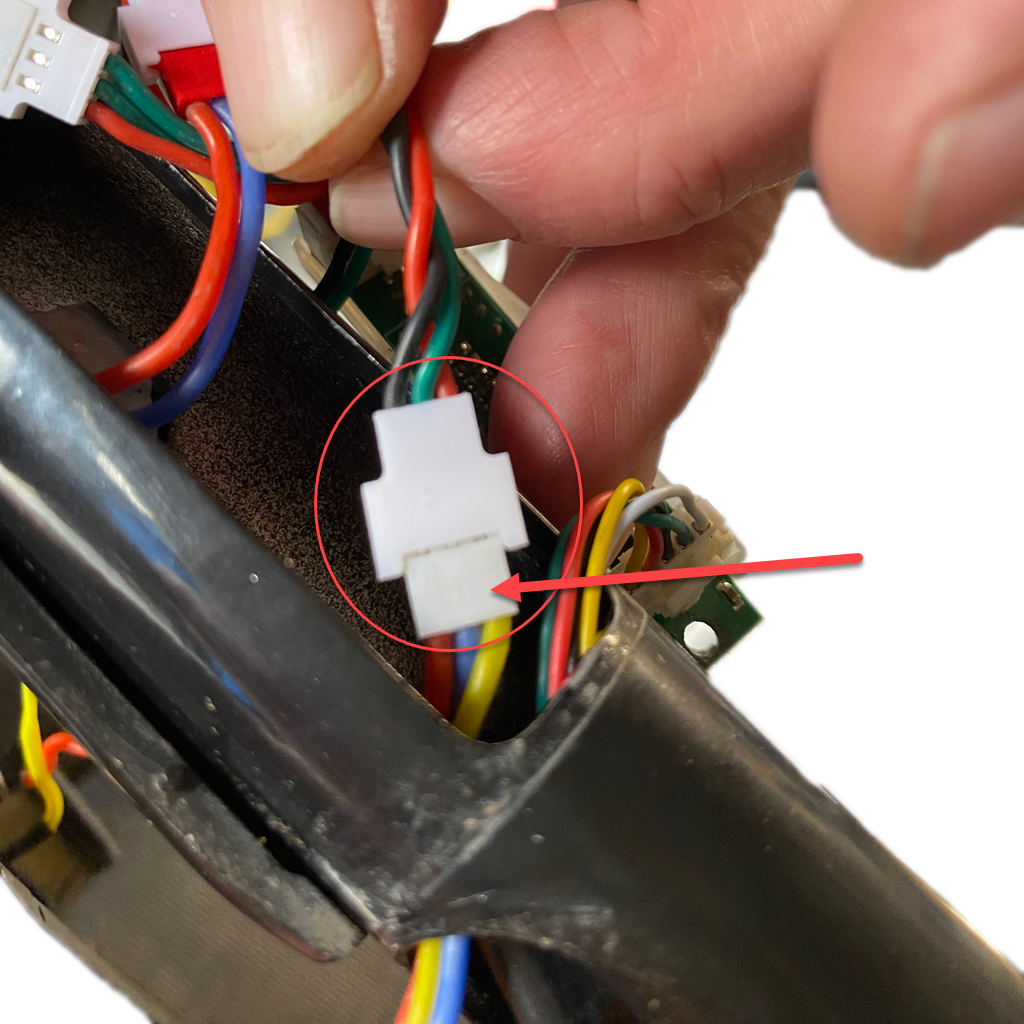

Unplug and remove the rheostat.











Plug in new rheostat and reassemble.
