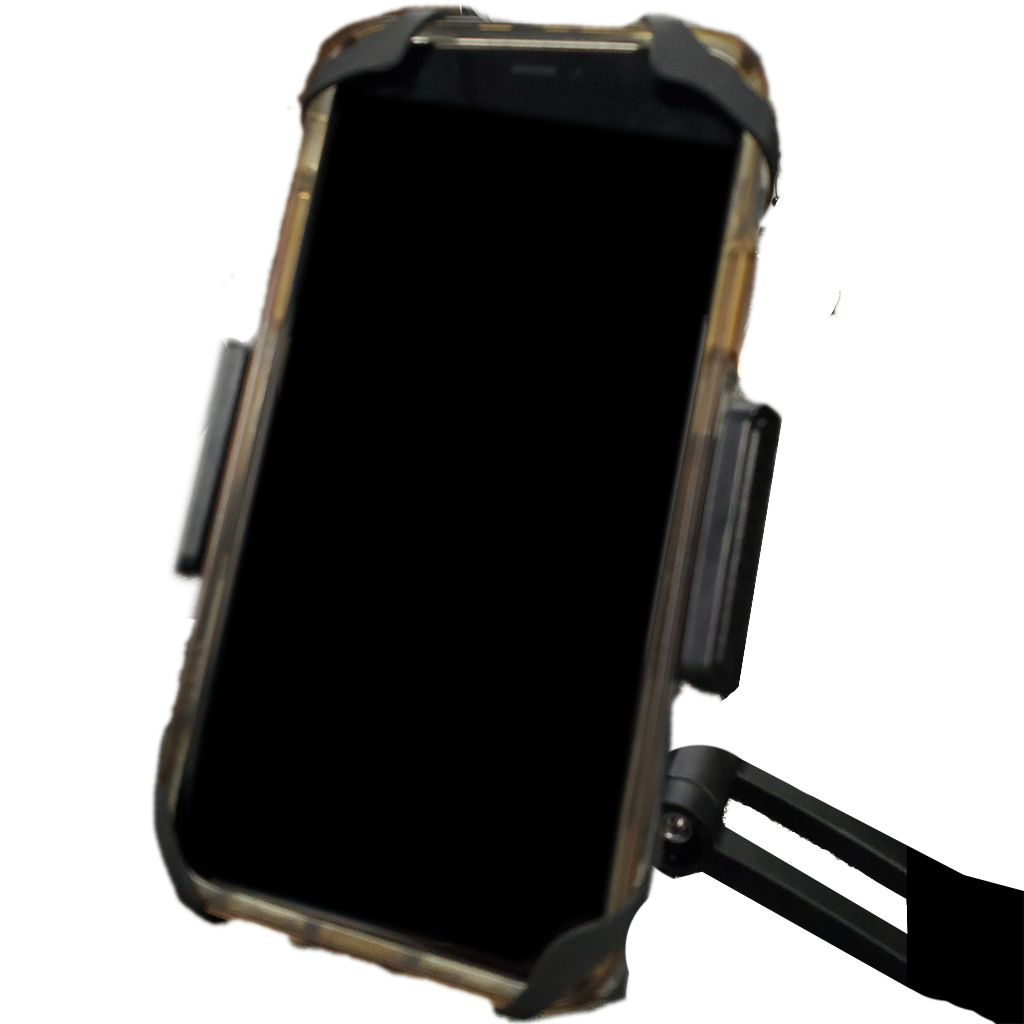

Cellphone / GPS Holder

Cellphone / GPS Holder

Mounting the Cellphone/GPS Holder

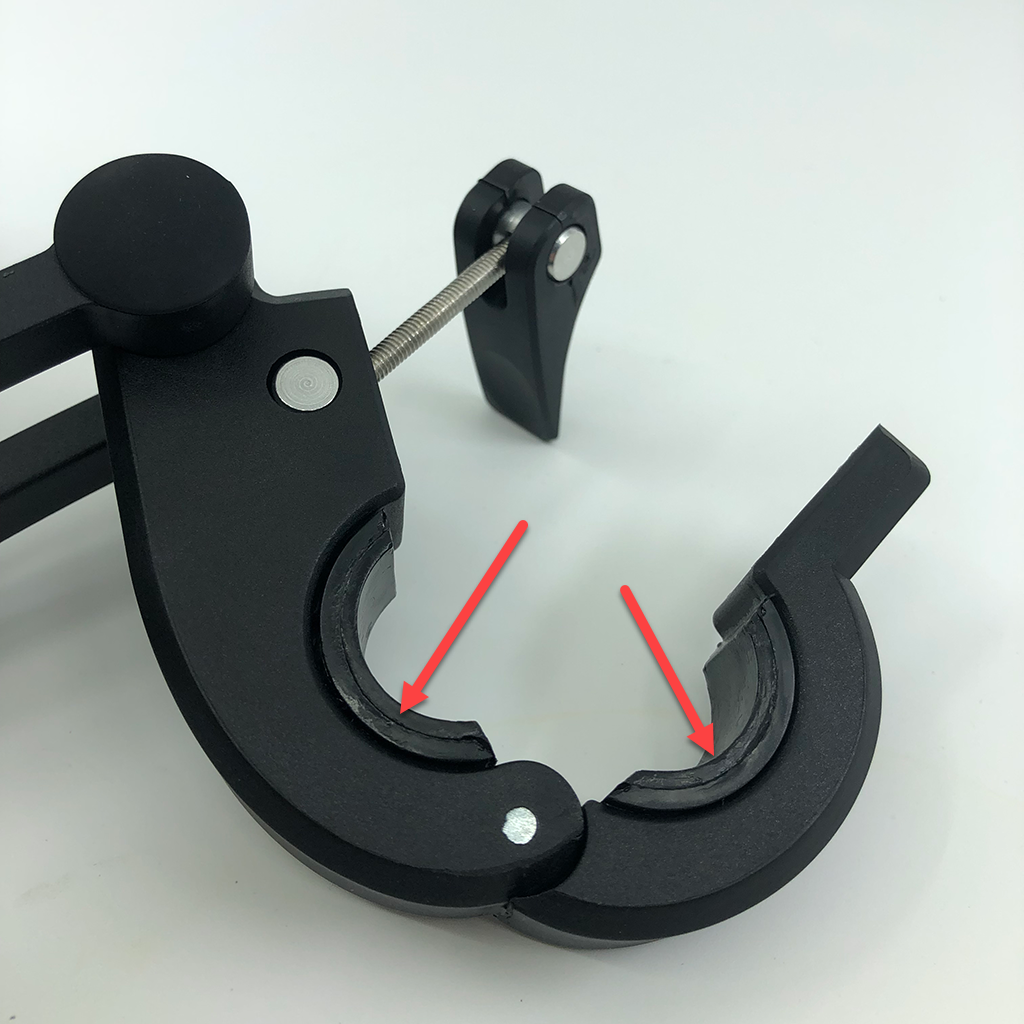

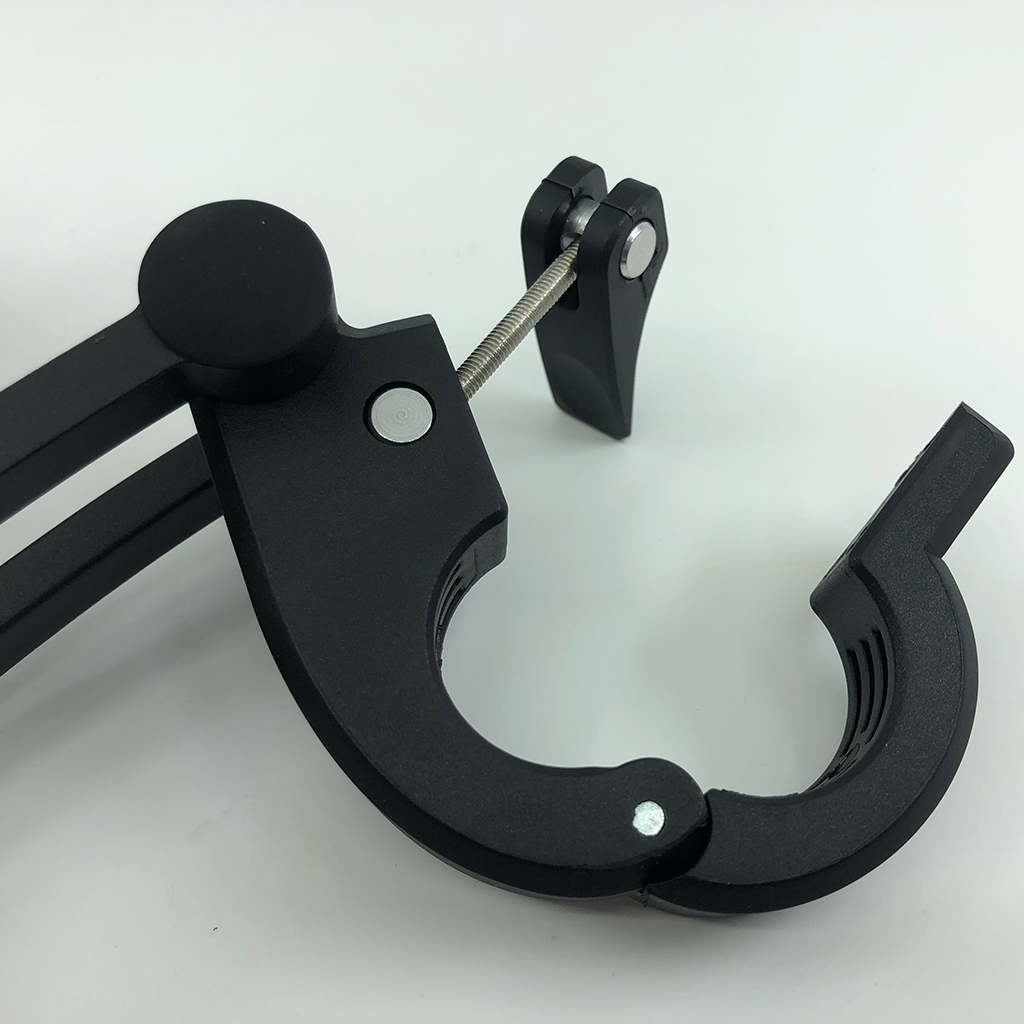

Unscrew the clamp lock and remove the rubber adapter pieces from inside the clamp.

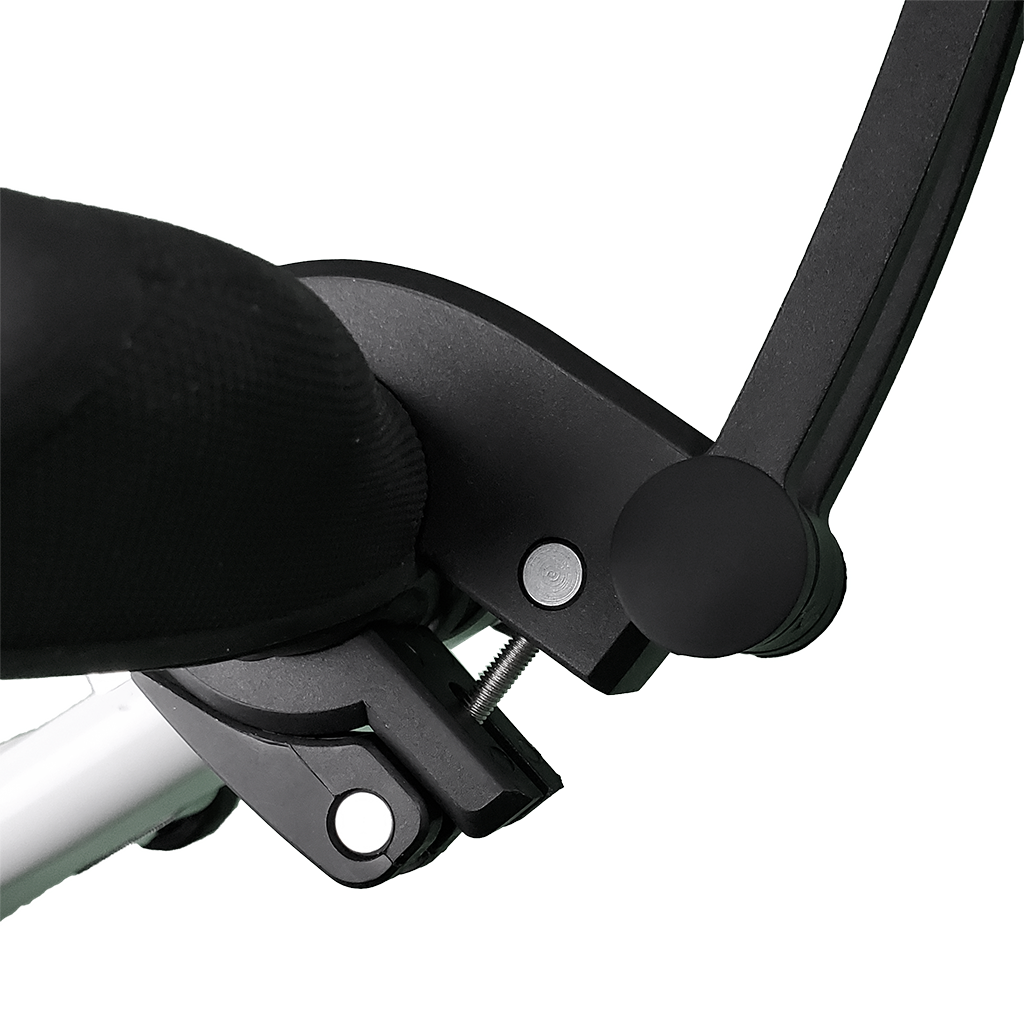

Put the clamp on the carts handle and tighten lock to secure.











Attaching your Phone or Device

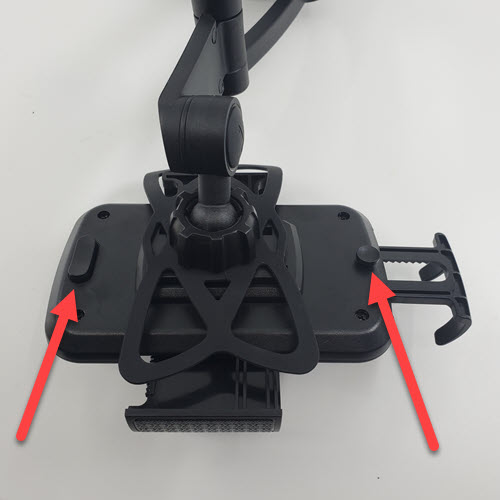

Use the buttons on the back of the holder to adjust the size of the holder.











Place your phone or device in the holder, and push the sides together to fit the device.

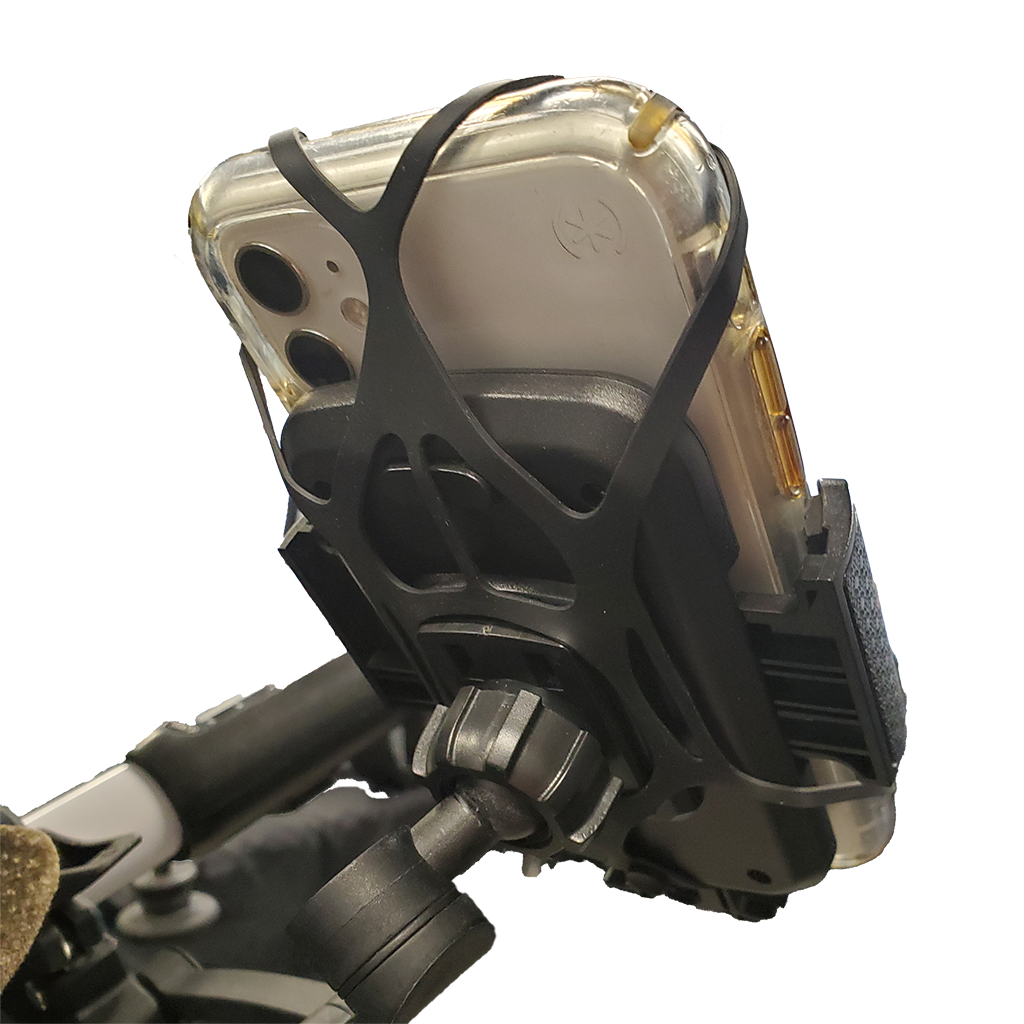

Pull the corners of the "rubber butterfly" around the corners of your phone to secure.









Rotate/Lock Device

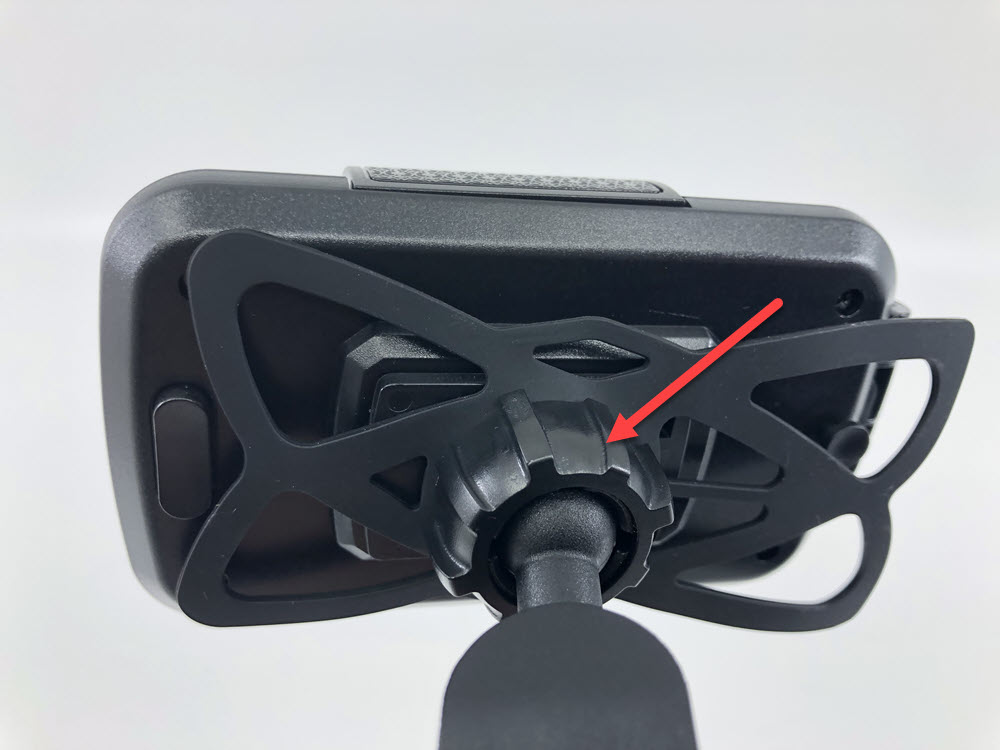

Use the collar on the back of the device to loosen and tighten the holder and adjust position.







Adjusting the Arms

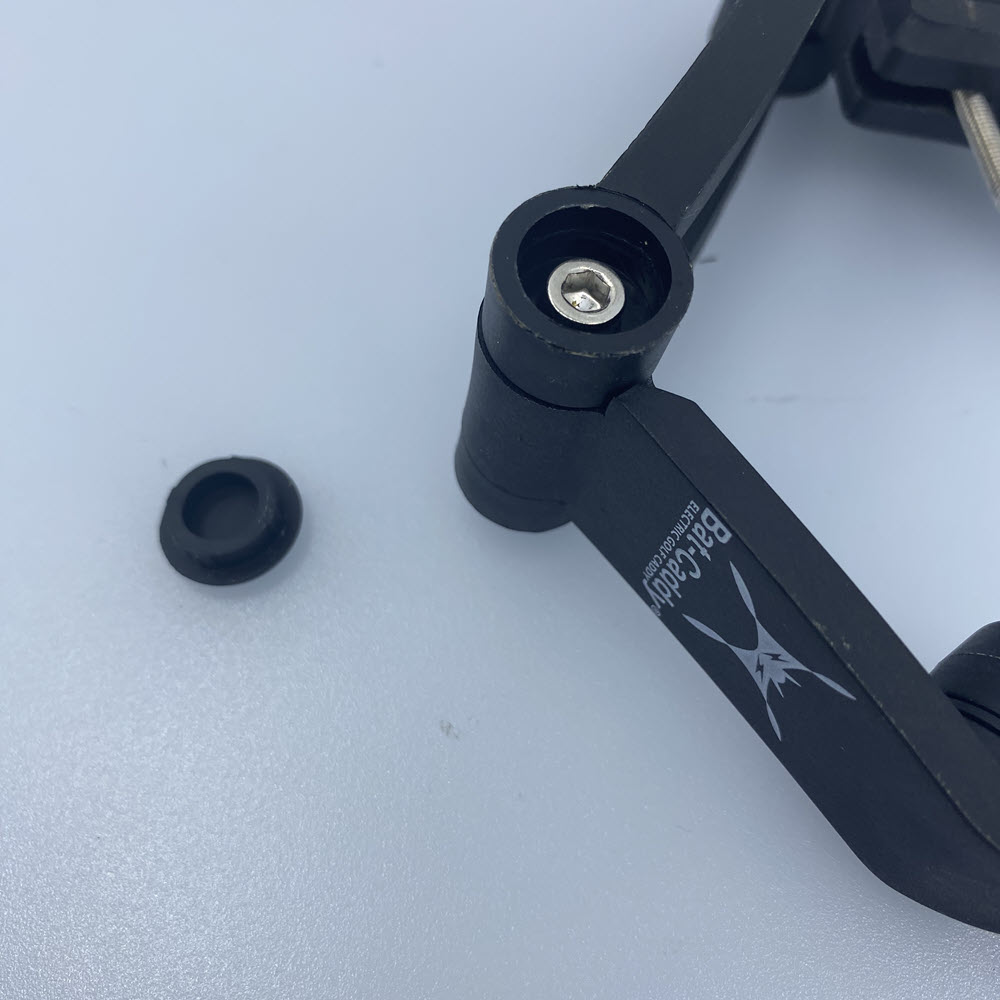

Remove the "wrench caps" from folding arms to tighten/loosen hex bolt and adjust.
