BATCADDY EVO Umbrella Holder

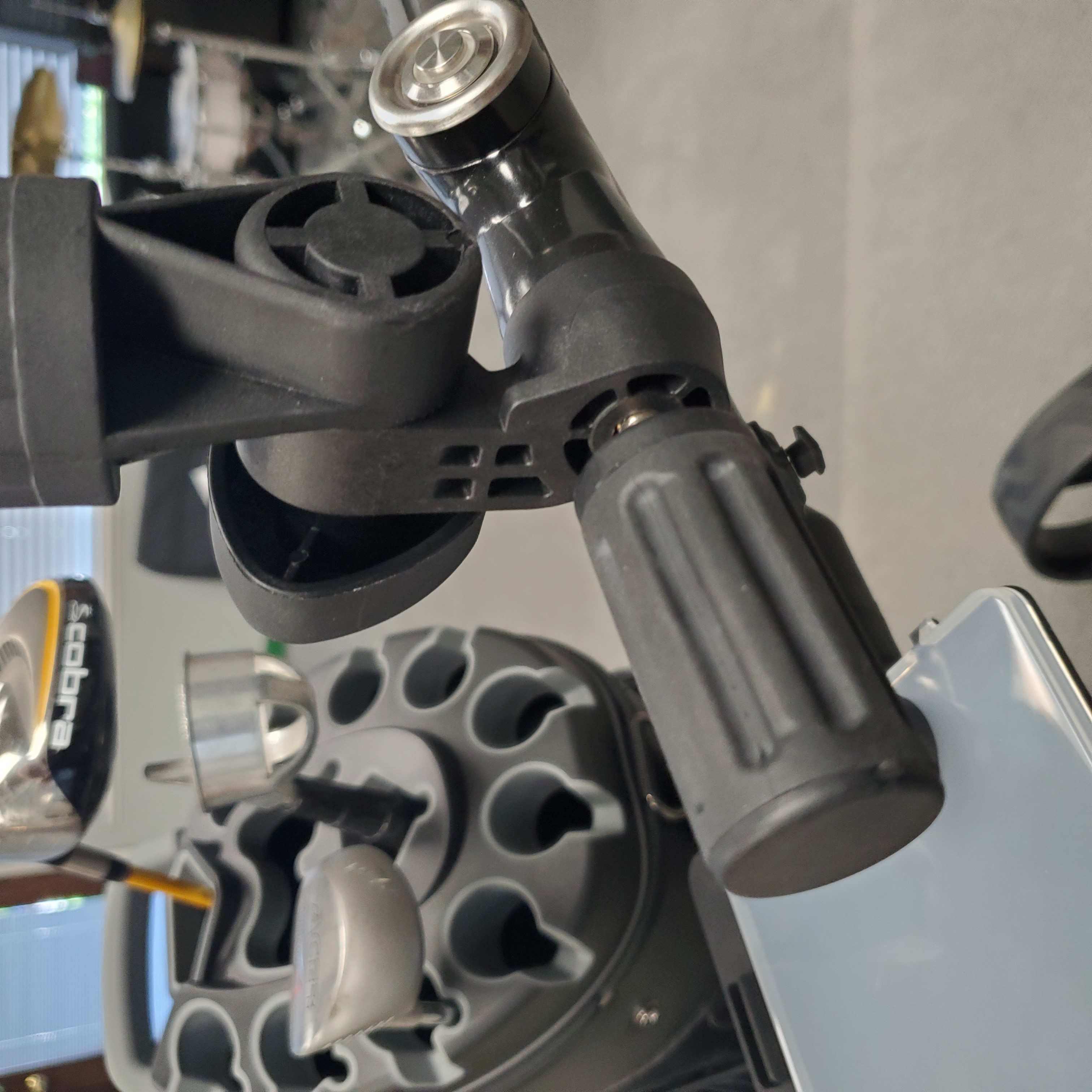

The umbrella holder for the BATCADDY EVO is installed on the left side of the carts handle.

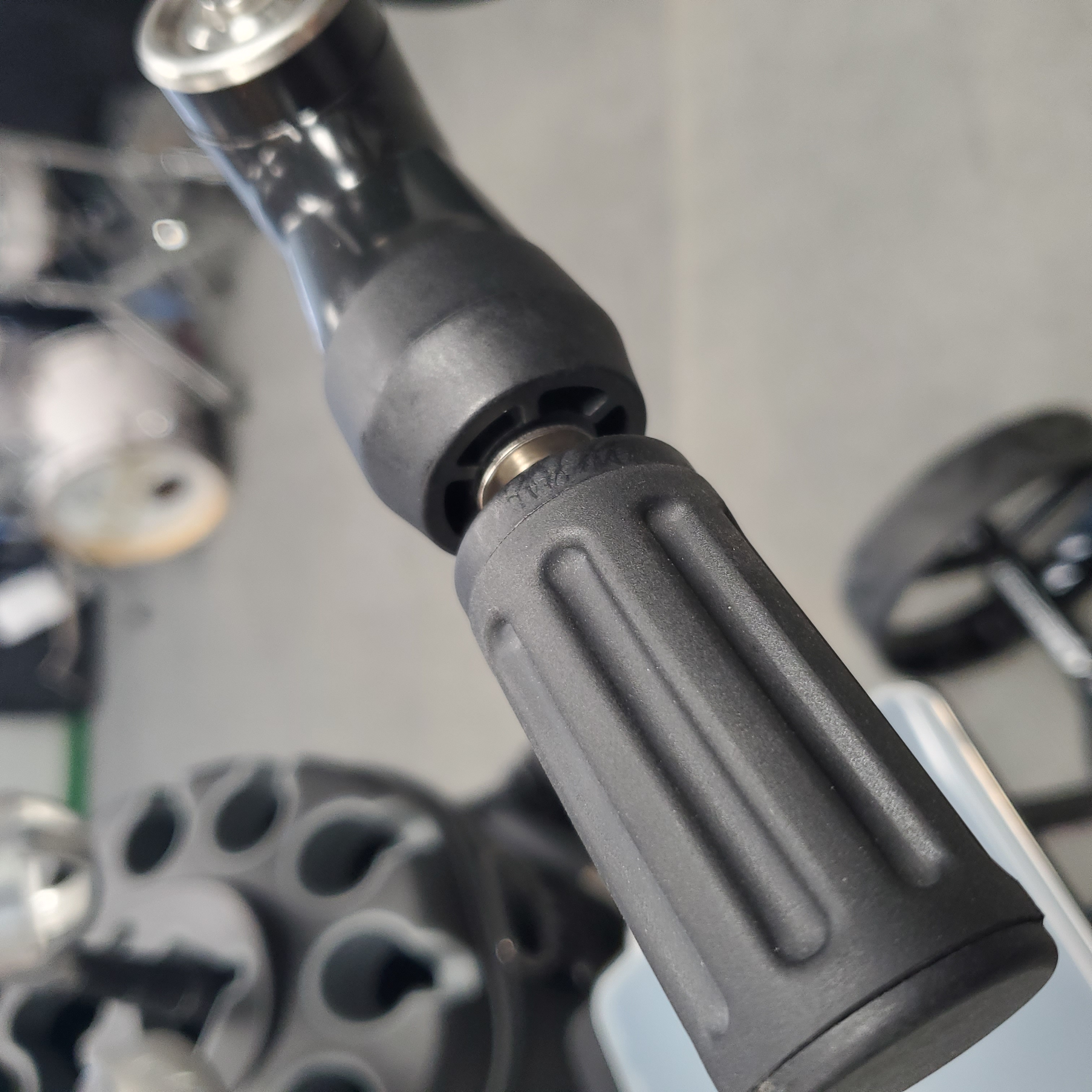

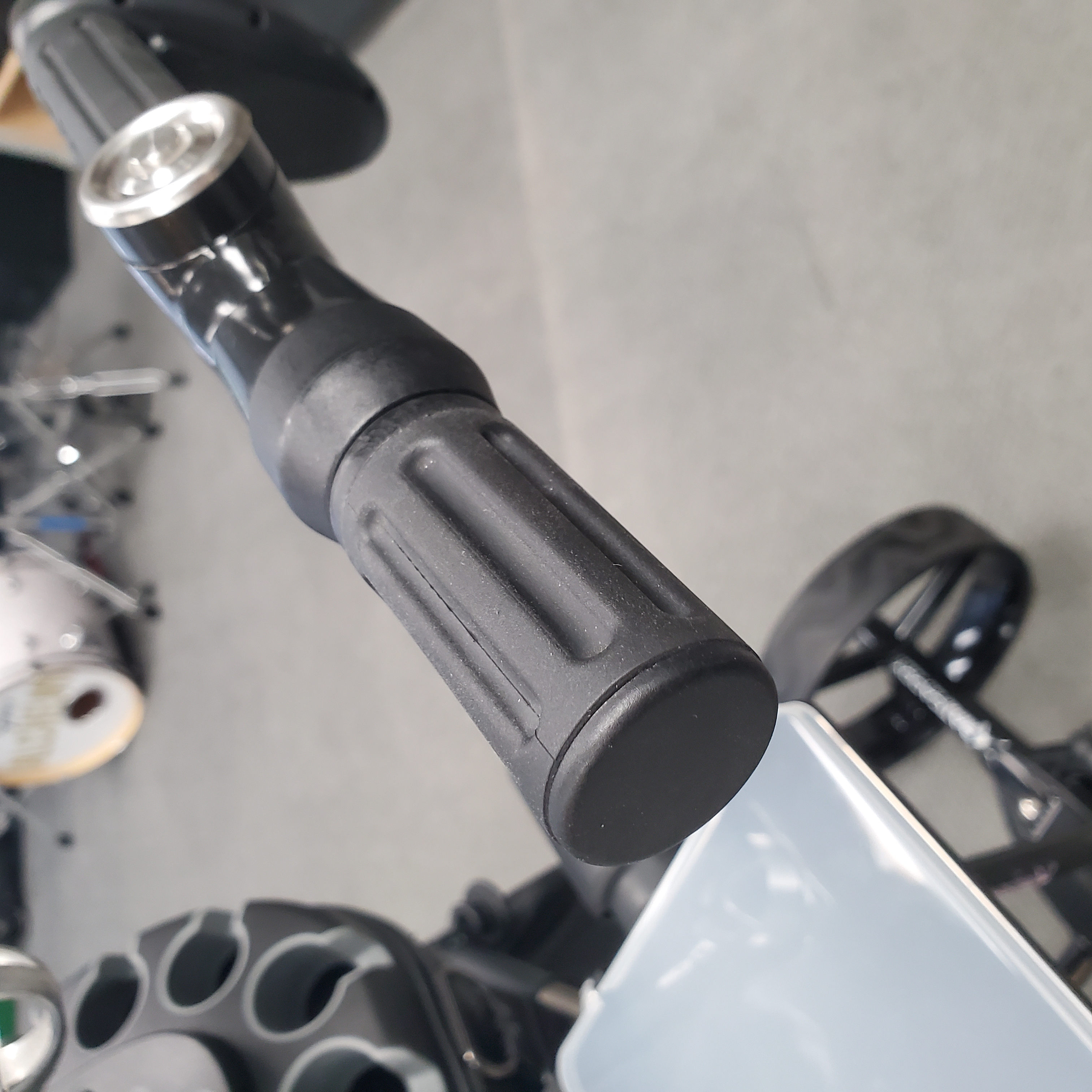

The handle can be removed by turning it counter-clockwise

Once the handle has been removed you can set aside the plastic spacer.

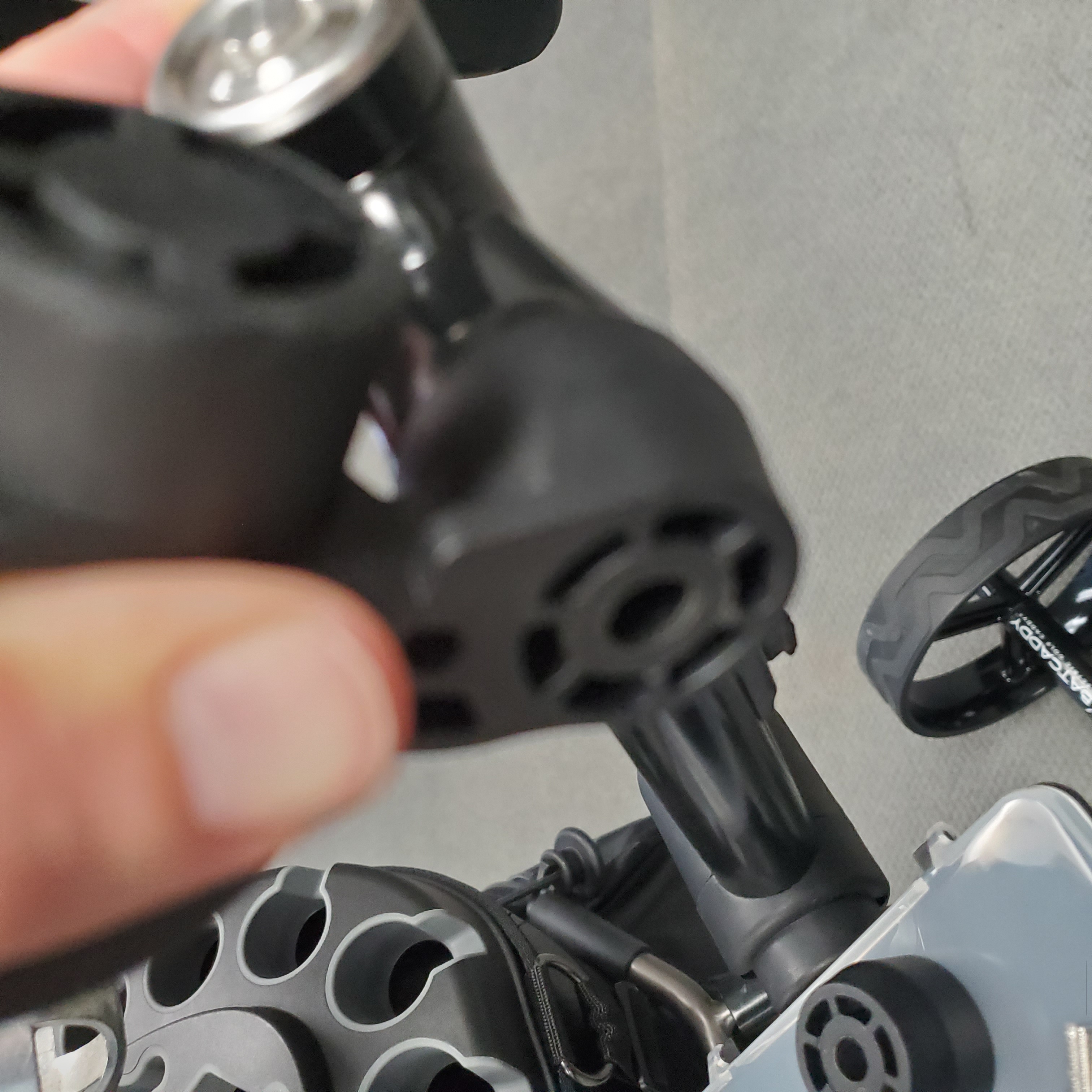

Now match up the teeth on the umbrella holder to the teeth on the carts handle.

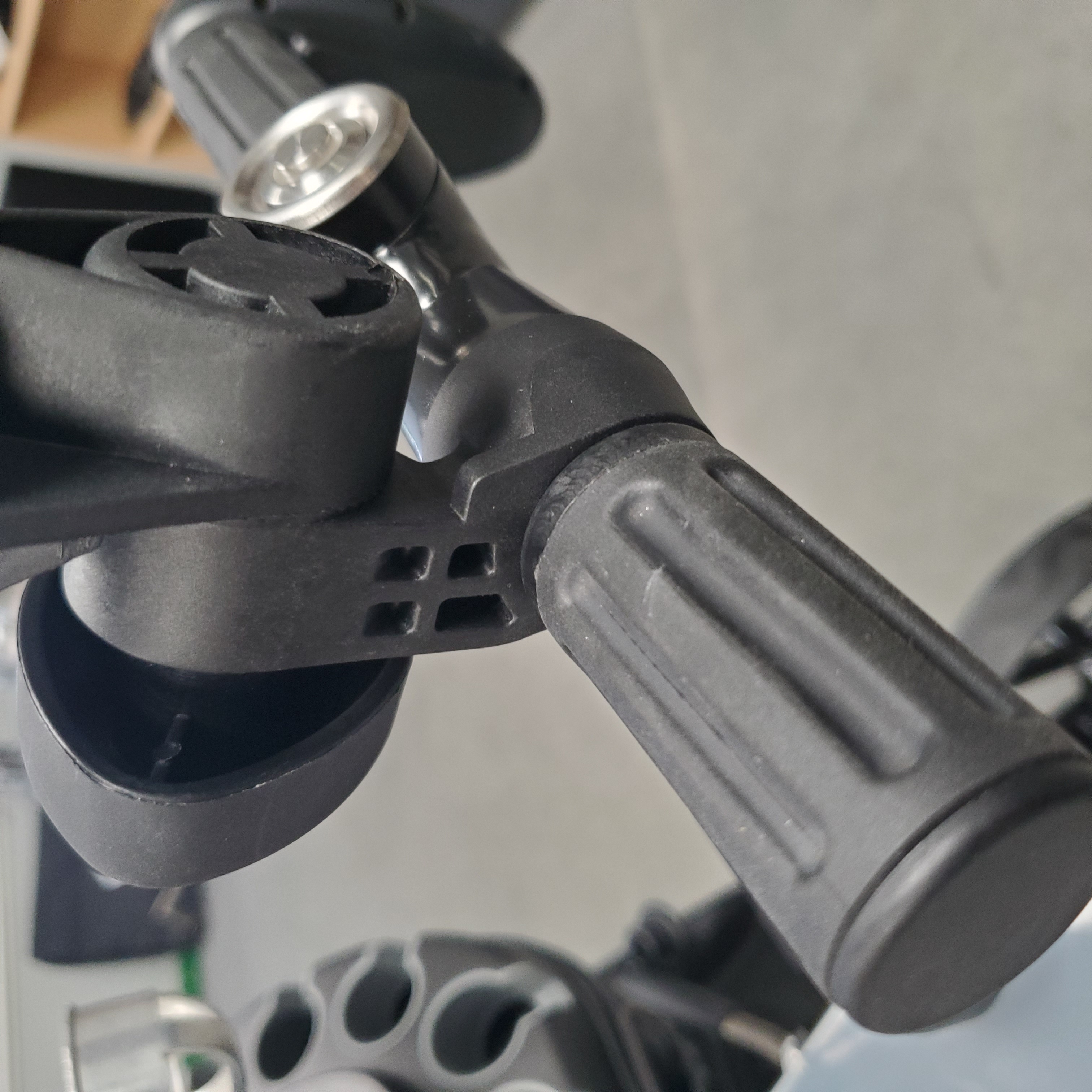

Now replace the handle piece and turn it clockwise to tighten.
