Adjusting the Front Wheel Tracking for the BATCADDY X4,X8 and X9

Adjusting the Front Wheel Tracking for the BATCADDY X4,X8 and X9

Find the Tracking Mechanism

The tracking mechanism can be found attached to the front axle on the right side of the cart. You can loosen or tighten the two nuts on the mechanism to adjust the tracking.

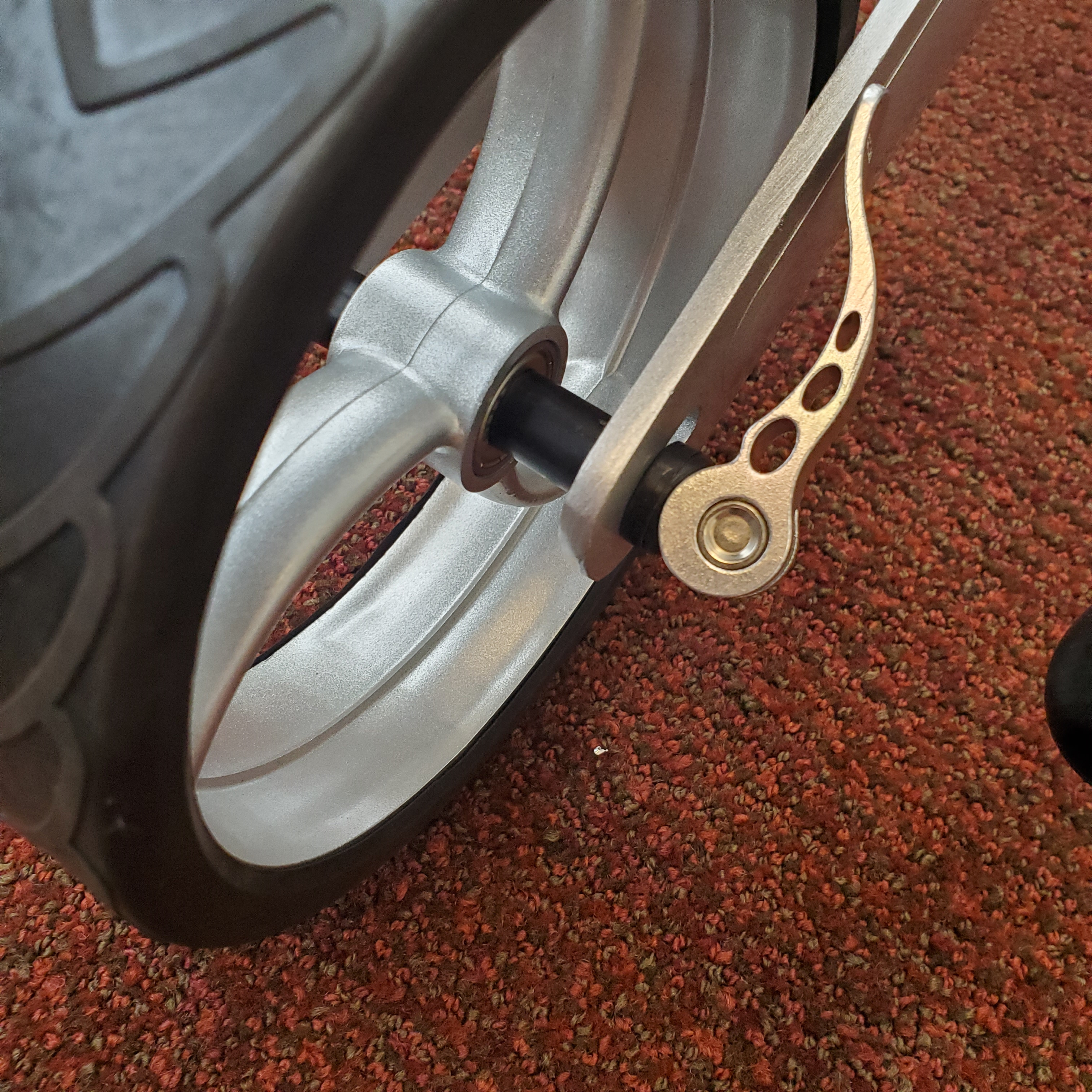

Release the Handle

Before adjusting the tracking, you will want to release the handle on the opposite side of the wheel.

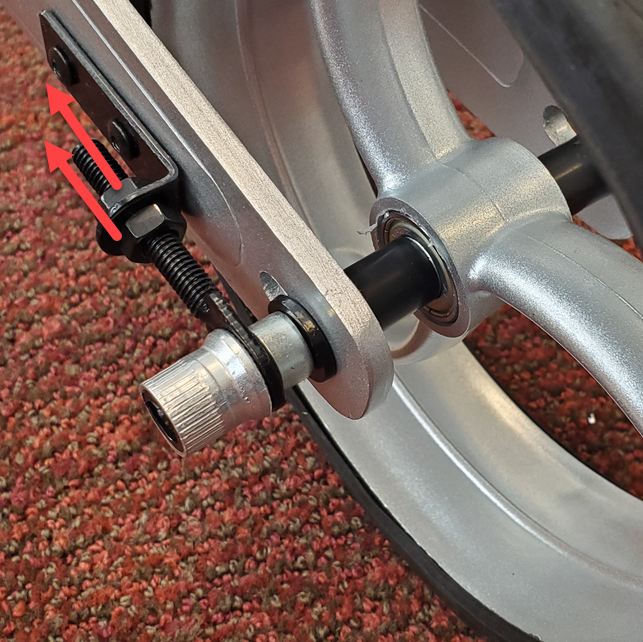

Adjusting The Tracking

If the cart is veering to the right, you will want to point the axle to the left. To make this adjustment, you will want to move the axle to a forward position by loosening both nuts on the tracking mechanism starting with the outside nut.
If the cart is veering to the left, you will want to point the axle to the right. To make this adjustment, you will want to move the axle to a rear position by tightening both nuts on the tracking mechanism starting with the inside nut.
